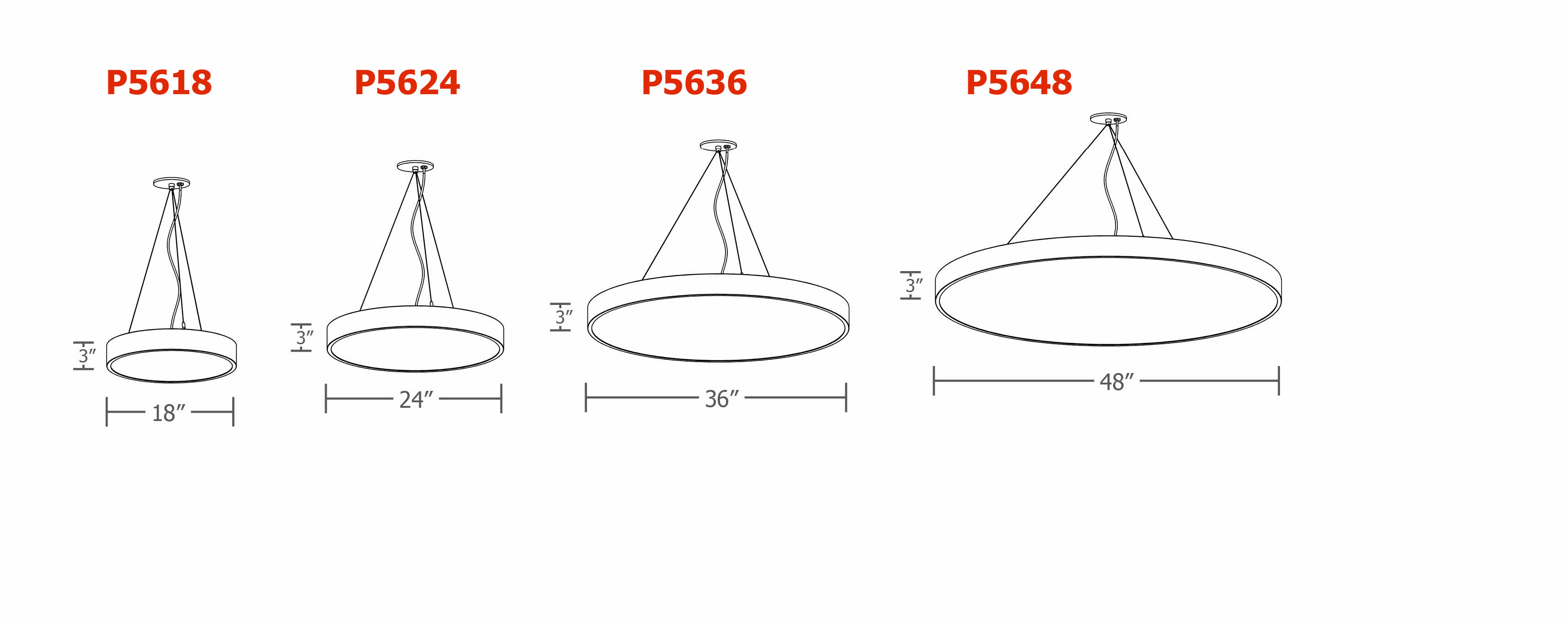

sizes
P5618 18"d x 3"h
P5624 24"d x 3"h
P5636 36"d x 3"h
P5648 48"d x 3"h
NEW THINNER 3"H PROFILE!!
trim ring minimal 3"h roll formed aluminum extrusion. 6061 T1 alloy. .100 typ. wall. diffuser satinice WD855 72% light transmission, light scattering, glare reduction, colorless diffusion acrylic. reflector aluminum array platform painted high reflectance (>92%) matte white powder coat provides 100% downlight. for uplight, specify under options.
LED / driver
specification-grade LED modules with integrated wide angle optics to minimize diffusion depth and increase illumination uniformity. 90+ CRI. L80>72,000 hrs. 3000K, 3500K, 4000K. driver: integral, programmable, UL class P, class2, universal input (120-277v), constant current, 0-10v controllable, 1% minimum dimming level. complies with DLC (DesignLights Consortium™), and CA Title 24 technical requirements.
